Violin Plot from Scientific Research

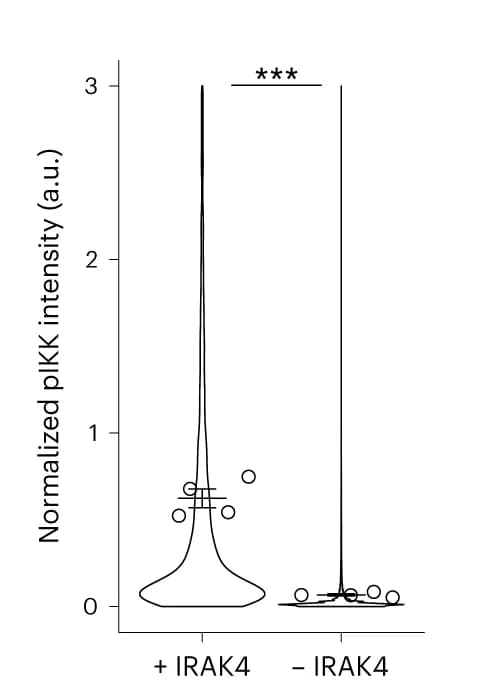

Quantification of pIKKα/β-AF647 intensity in IRAK4 knockout cells following UV-based IRAK4 release (0.6 ± 0.05, m = 2,709) and without IRAK4 release (0.07 ± 0.006, m = 112184). Violin plot shows the distribution of individual MyD88 puncta measurements; dots superimposed on the violin plot represent means of replicates ( N = 4). Bars represent mean ± s.e.m. Significance was tested using the two-tailed unpaired t -test (*** P = 10 − 5 ), employing the means of replicates as data points. m , number of MyD88 puncta analyzed.

DOI
