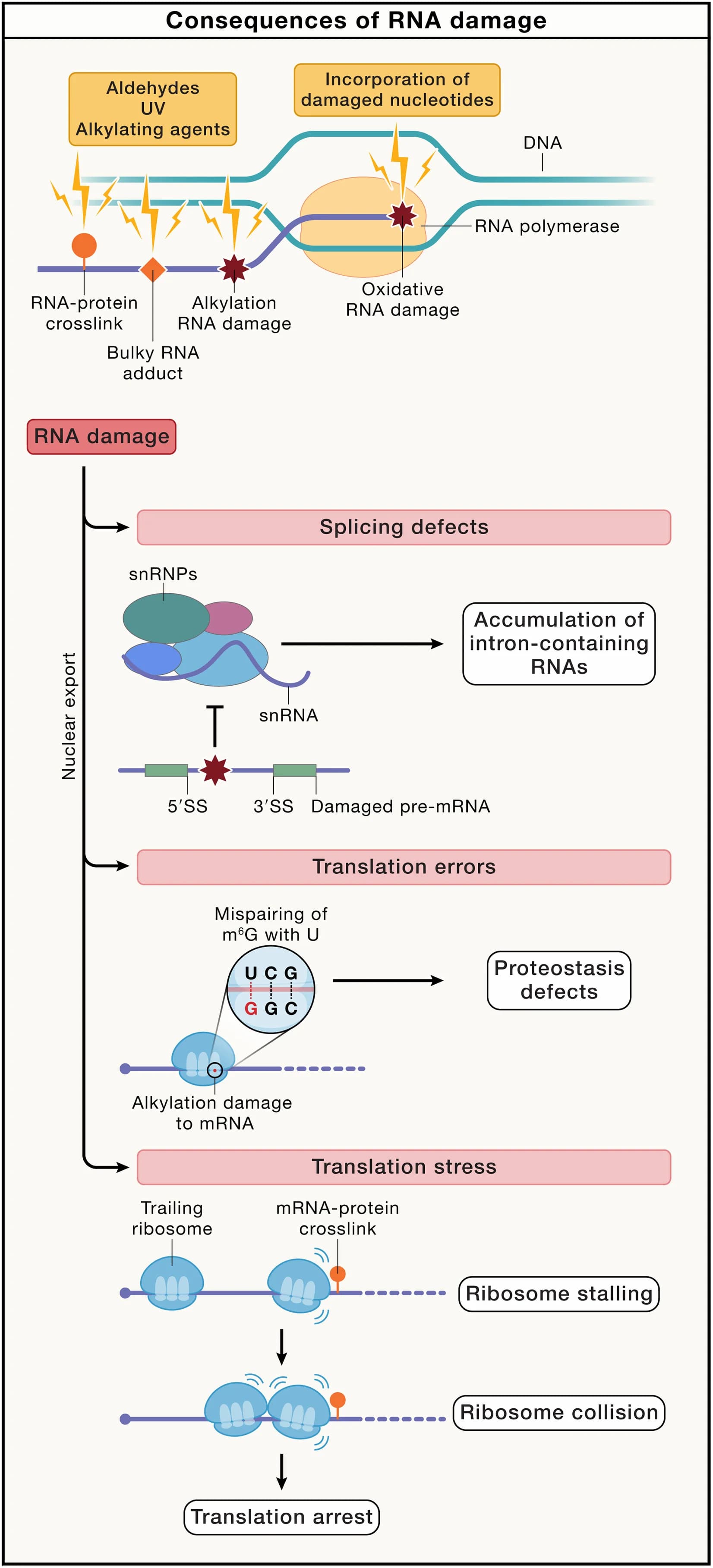

RNA damage affects all stages during the life cycle of an RNA molecule. Misincorporation of damaged nucleotides by RNA polymerases or nascent RNA damage interferes with productive splicing (top). Mispairing of damaged mRNA bases with tRNA can lead to amino acid misincorporation and subsequent proteostasis defects (middle). mRNA lesions block progression of translating ribosomes (bottom).
