Line Plot from Scientific Research

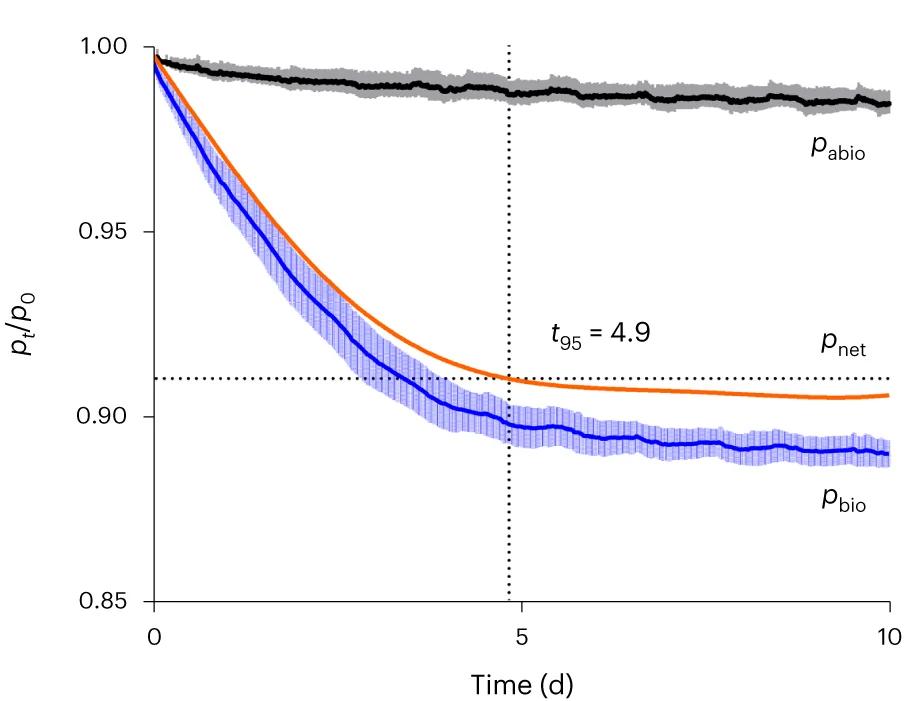

Normalized pressure progression in M3 (p bio, blue line, n = 14) and across abiotic control mesocosms M4 and M5 (p abio, grey line, n = 3 and n = 7, respectively). Data are presented as mean values ± SD. Gaussian fit (latent function) of net pressure loss of 14 conversion cycles performed in M3 (p net, orange line, n per cycle = 481). The vertical dashed line denotes the intercept between the latent function and the benchmark of 95% of maximum theoretical pressure loss possible via geo-methanation (horizontal dashed line); t 95 represents the average time to complete the geo-methanation cycle with a benchmark of 95% maximum pressure loss. p t: mesocosm pressure at time point t; p 0: initial mesocosm pressure.
