Heatmap from Scientific Research

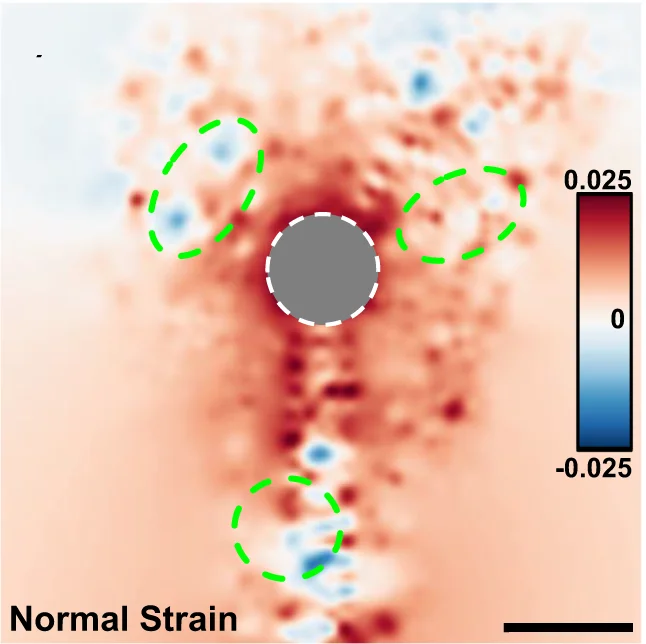

Normal strains calculated from AFM topography exhibit maximum values of ~2.5% away from the cone center, which has been excluded from the images due to ambiguities in the strain state at the tip apexes and to highlight the fine wrinkles.
