Line Plot from Scientific Research
CC-BY
2
Views
0
Likes
Citation

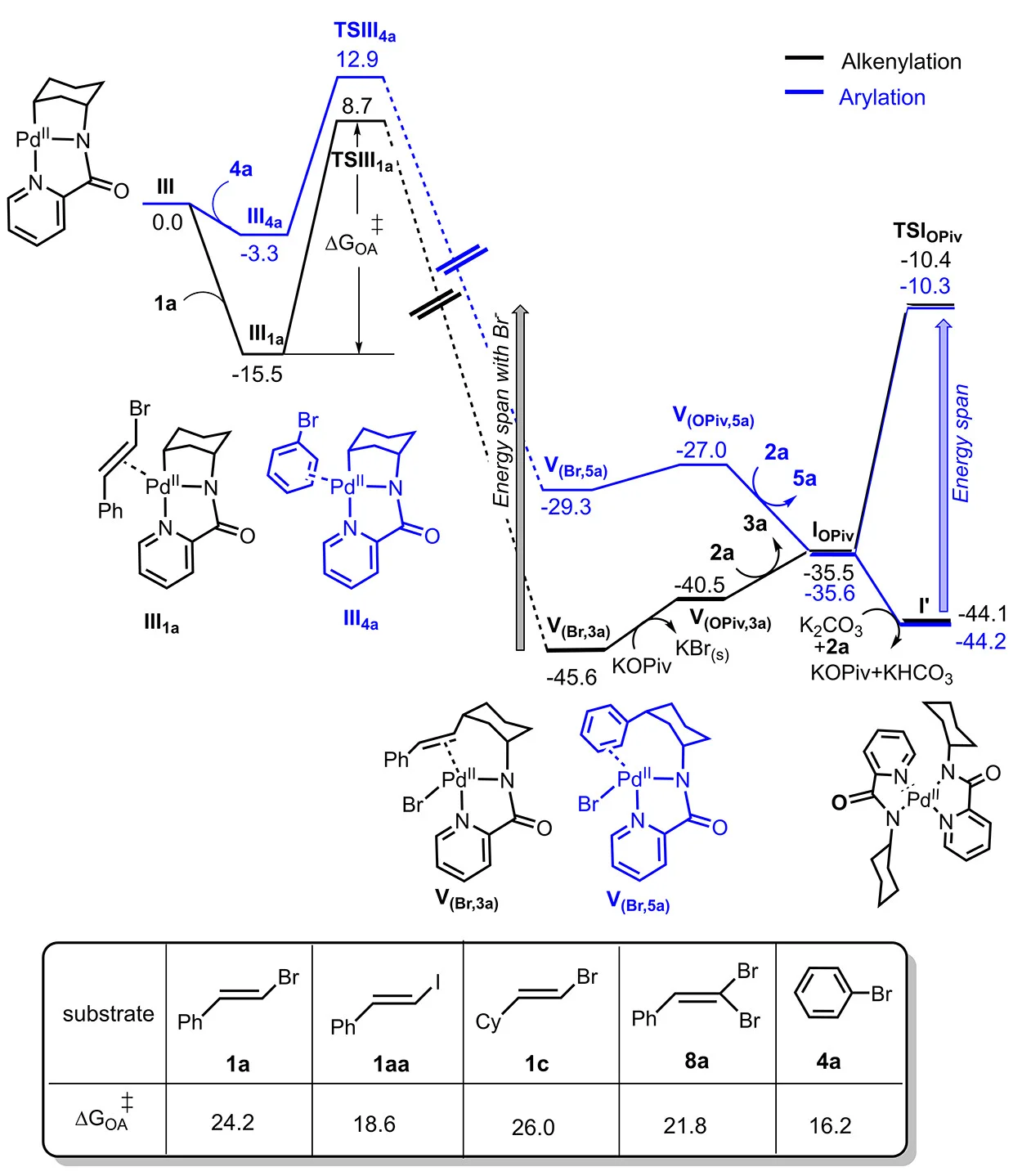

Energy diagram for the alkenylation reaction with reactant1a(black) and the arylation reaction with reactant4a(blue). Barriers for the oxidative addition step, ΔG‡, for different electrophiles and halide leaving groups are also shown. Gibbs free energies in kcal mol–1.
#Line Plot#Workflow#Table Image#Energy Diagram#Alkenylation#Arylation#Gibbs Free Energy#Oxidative Addition
