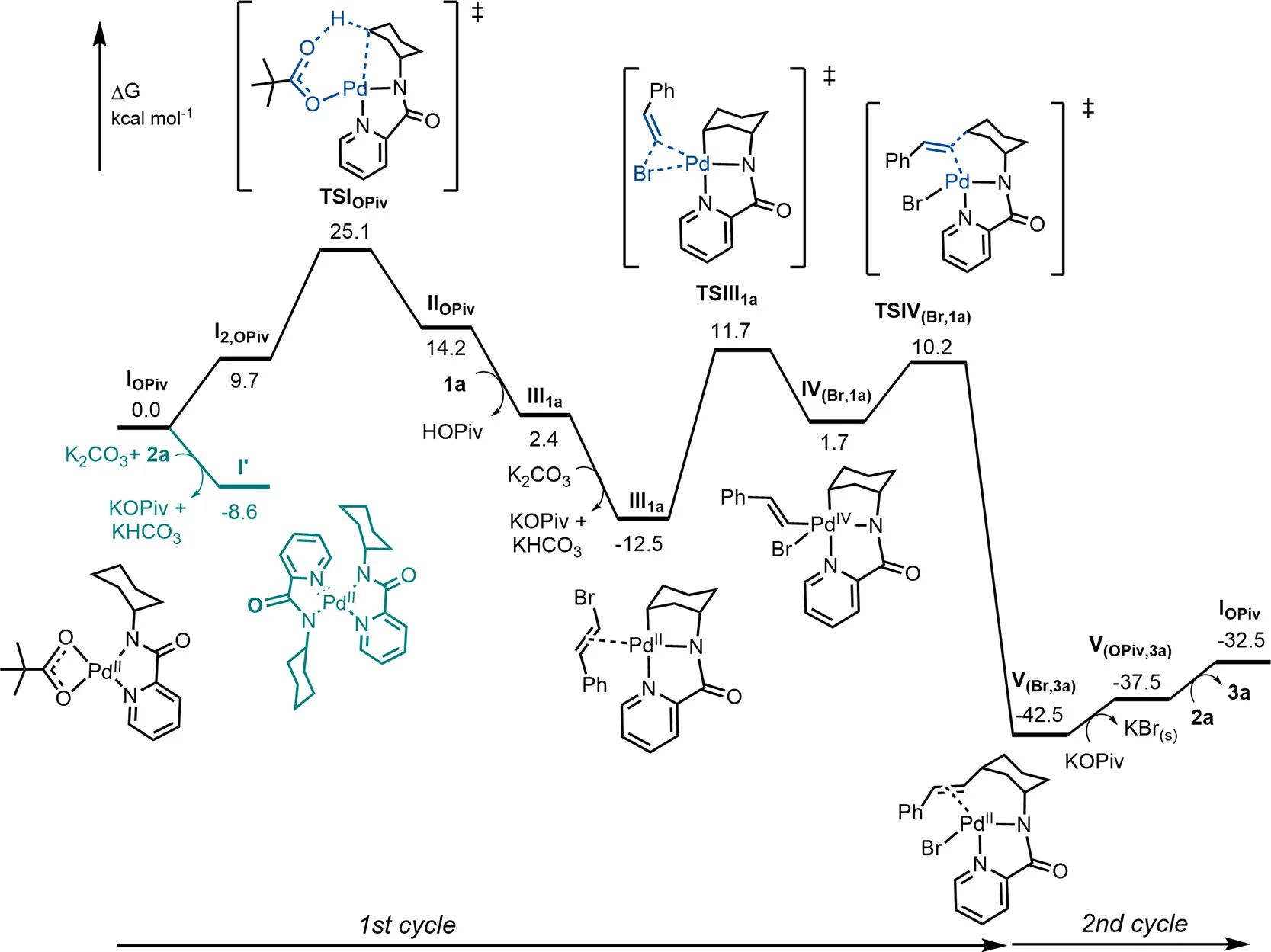

Energy diagram for the -C(sp3)–H alkenylation ofN-picolinoylcyclohexanamine (2a) with (E)--bromostyrene (1a) as a model reaction studied by DFT.
