Line Plot from Scientific Research

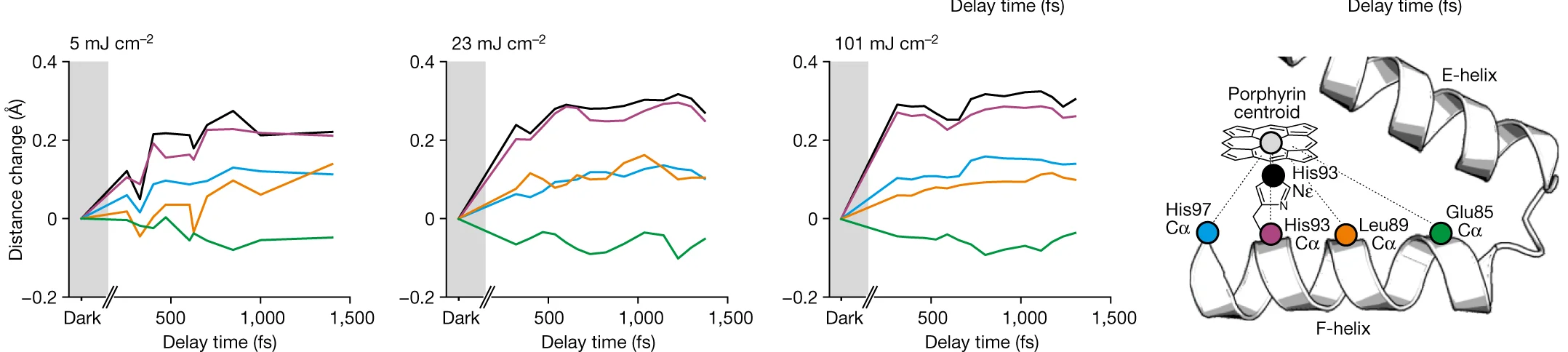

The length of the correlated motion along the F-helix is clearly visible. Shown are displacements from the haem centroid of the His93 nitrogen (black) and Cα (purple), the Cα atoms of His97 (blue) and Leu89 (yellow) which are located at one helical turn upstream and downstream, respectively. Another turn further upstream (Glu85 (green)) the effect is strongly reduced. Importantly, a strong oscillatory modulation (period of about 300 fs) of elements of the F-helix (His97 Ne, black line, and His97 Ce, purple line) is only visible for the 5 mJ cm − 2 data.
