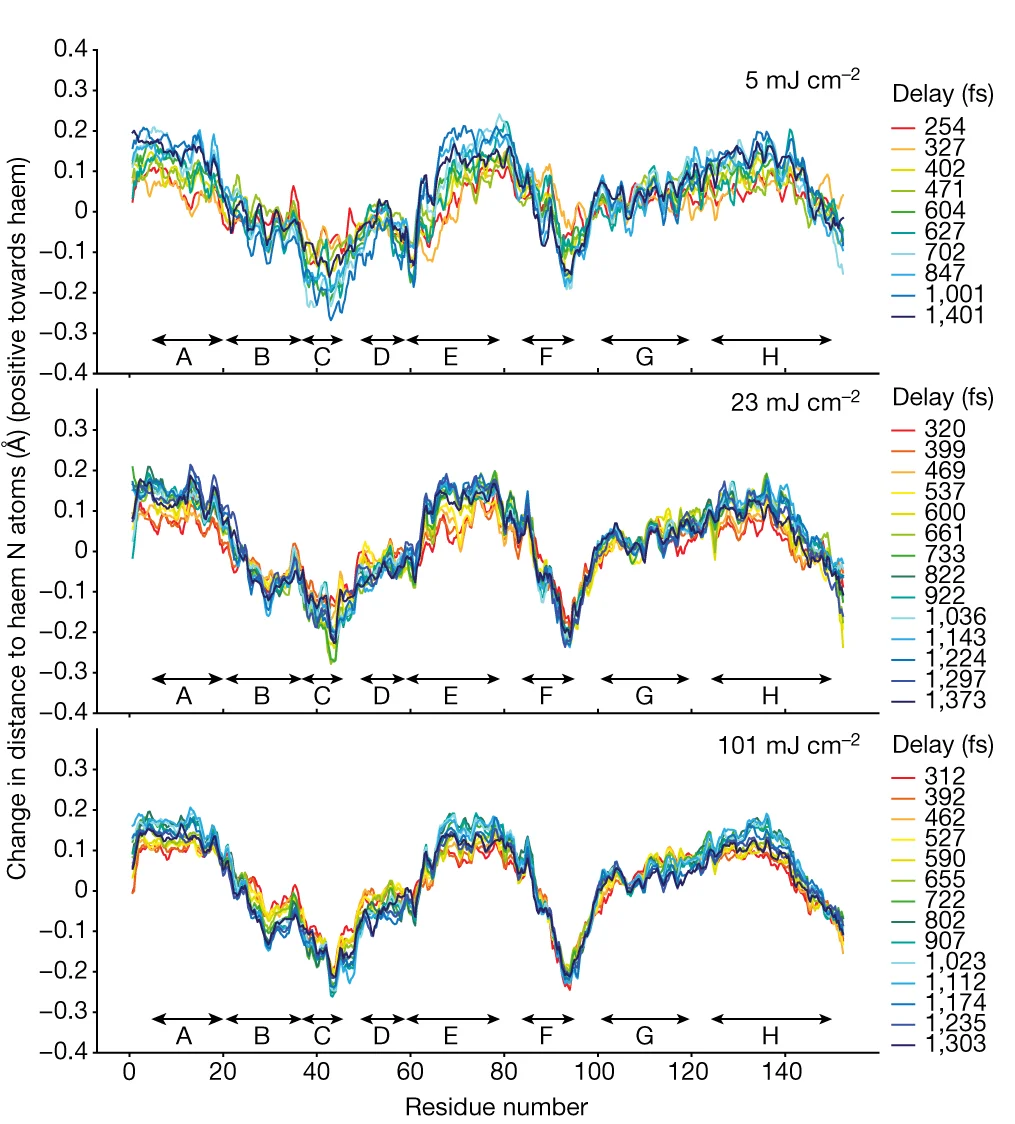

Guallar-type plots 36 showing the change in distance of backbone N, Ca and C atoms to the haem nitrogens for each time delay, for 5, 23 and 101 mJ cm − 2 pump pulse energy. The speed of the changes is strongly fluence dependent.
