Scatter Plot from Scientific Research

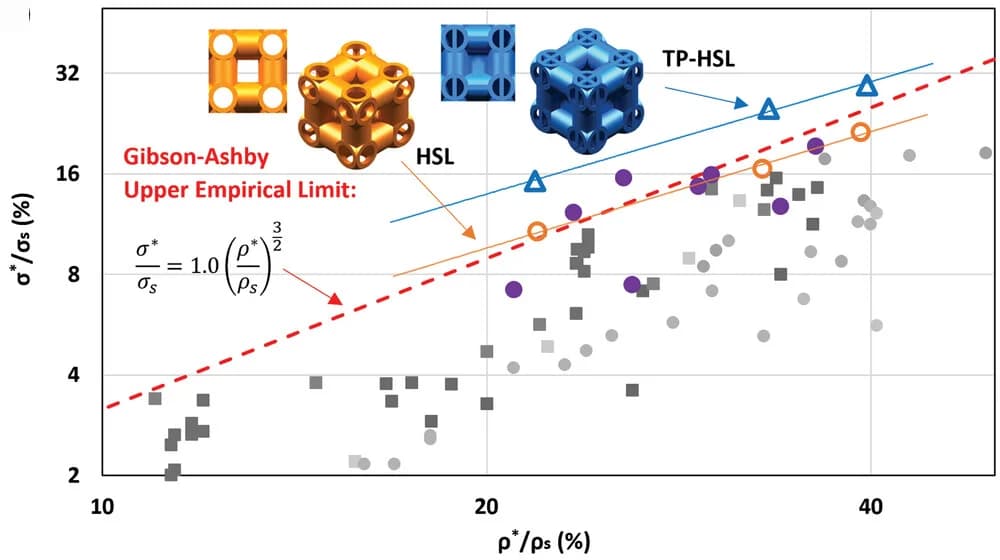

Log–log plots with the Gibson–Ashby models for relative yield strength versus relative density. The Ti-6Al-4V HSL and TP-HSL data are plotted against the reported solid-strut lattices (SSLs) of Ti-6Al-4V, Inconel 625, SS316L, CoCr, and AlSi10Mg that include 24 unit cell topologies[4,5]. In particular, reported LPBF Ti-6Al-4V simple cubic SSLs (purple) are assessed against the HSL (orange) and TP-HSL (blue) data[36-38].
