Line Plot from Scientific Research

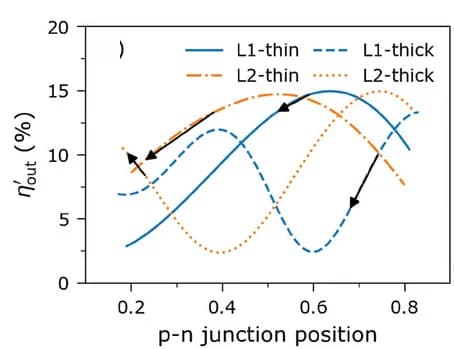

The simulated outcoupling efficiency as a function of the position of the p-n junction for the four LEC devices. The thick black solid lines with arrows at the end indicate the observed shift of the steady-state p-n junction position (derived from Figure2c) with increasing current density from 10 to 50 mA cm-2.
