Illustration from Scientific Research

Open access visualization of Illustration, Workflow, Recombinases, cDIO Vectors, fDIO Vectors
CC-BY
2
Views
0
Likes

Citation

DOI: 10.1016/j.neuron.2023.09.038

DOI

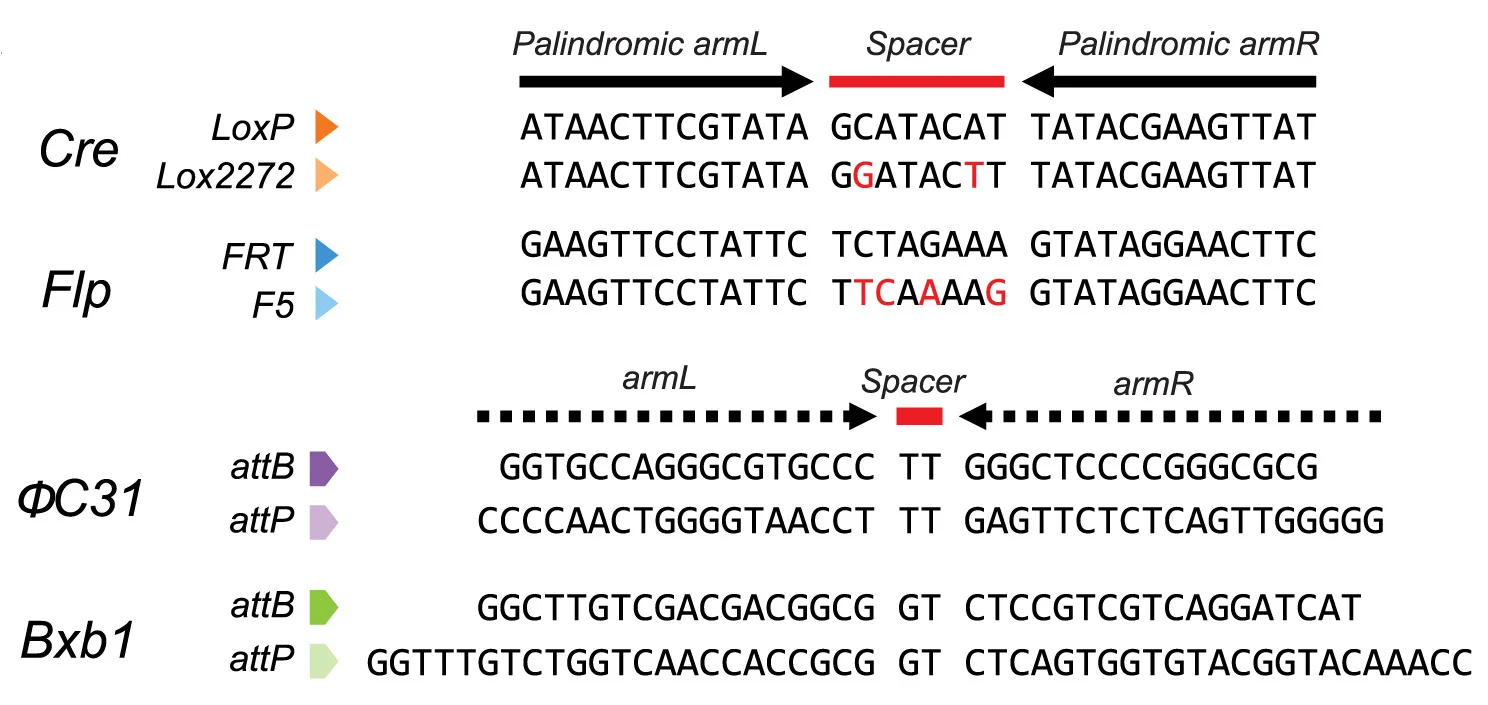

Sequence of the target sites for four recombinases used in cDIO, fDIO, bSIO, and pSIO vectors. The Cre and Flp recognition sites contain 13-bp palindromic sequences (indicated by arrows) flanking an 8-bp non-symmetric core sequence (indicated as spacer). The PhiC31 and Bxb1 recognition sites contain non-palindromic recognition sequences (indicated by dashed arrow) flanking 2-bp spacer.

#Illustration#Workflow#Recombinases#cDIO Vectors#fDIO Vectors#bSIO Vectors#pSIO Vectors#Cre Recognition Sites#Flp Recognition Sites#PhiC31 Recognition Sites#Bxb1 Recognition Sites
