Line Plot from Scientific Research

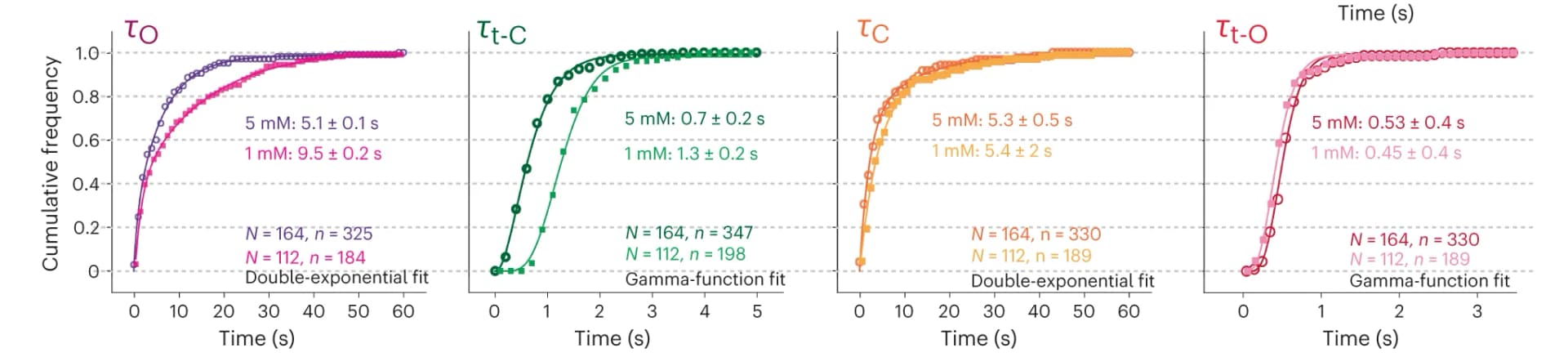

Cumulative distributions for cycle ( e ) and individual time components ( O , t-C , C , t-O ) ( f ) for 1 mM and 5 mM NTP conditions (lighter and darker colour, respectively). Number of molecules ( N ) and transitions ( n ) are shown at the bottom of each plot. O and C were fitted with double-exponential functions, tF and tR were fitted with gamma functions to obtain their respective transition time constants. Errors represent s.d. of three biological replicates.
