Line Plot from Scientific Research

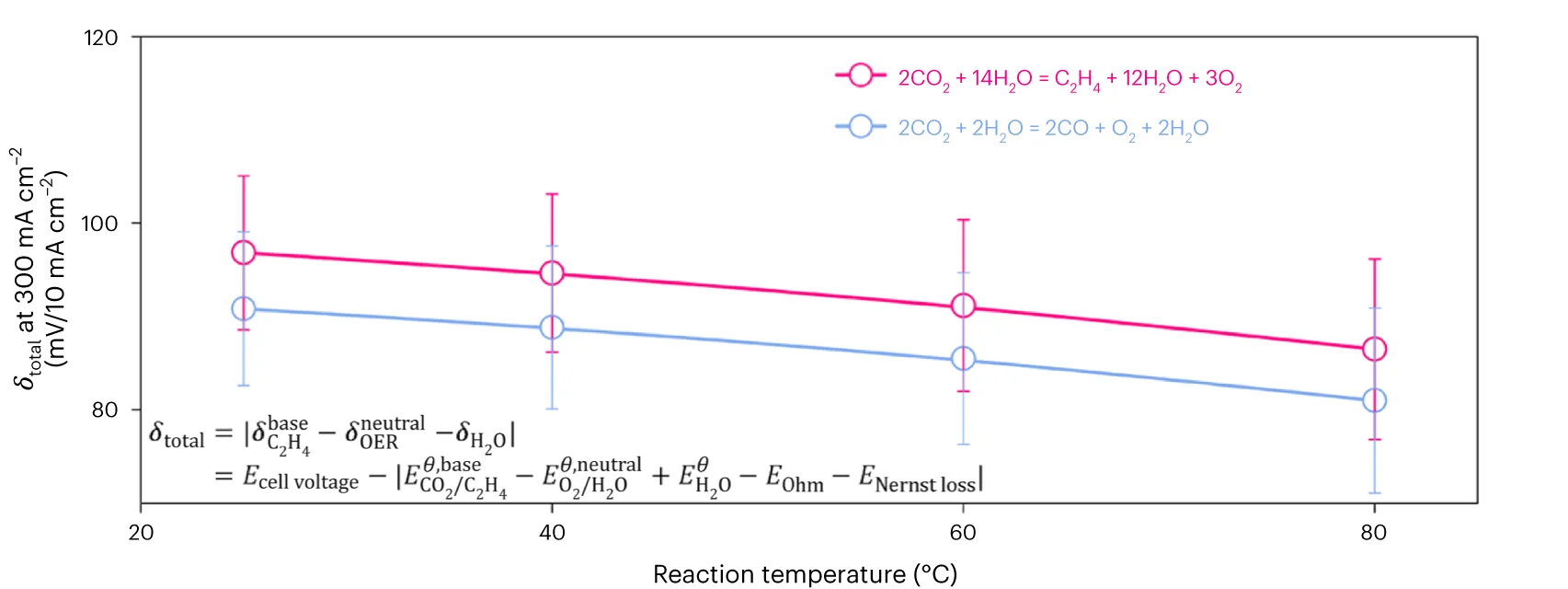

The total overpotential of all the reactions at different reaction temperatures. Values are means, and error bars indicate the s.d. (n = 3 replicates), except for g, where the values are means and the error bars indicate the effect of the AEMs pH on the overpotential (setting the pH of the AEM in the range of 8–14).
