Box Plot from Scientific Research

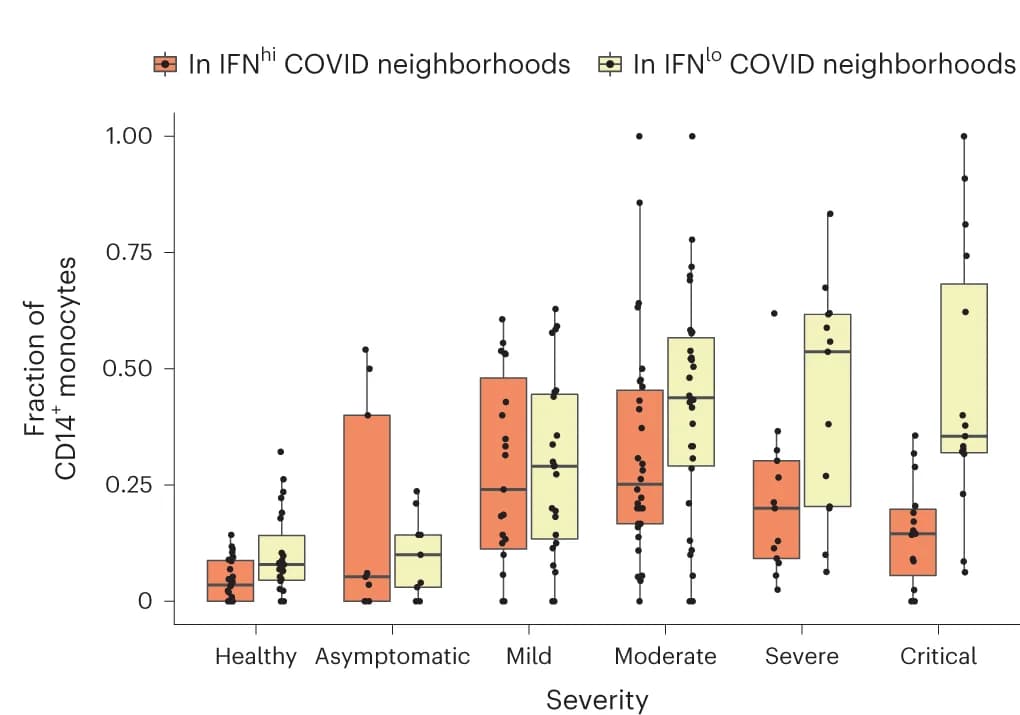

Distribution of COVID-19-enriched CD14 + phenotypes across patients with varying disease severity (healthy: n = 23 patients; asymptomatic: n = 9 patients; mild: n = 23 patients; moderate: n = 30 patients; critical: n = 15 patients; severe: n = 13 patients). Each point represents a donor; the y axis shows the fraction of all CD14 + monocytes in that donor showing an IFN hi COVID-19-enriched phenotype (orange) and an IFN lo COVID-19-enriched phenotype (yellow). The remaining fraction represents monocytes with a healthy phenotype (not shown). In the box plots, the center line denotes the median; the box limits denote the first and third quartiles; and the whiskers denote 1.5x the IQR.
