Workflow from Scientific Research

Open access visualization of Workflow, Illustration, Urea Cycle, Enzymes, Fold Change
CC-BY
1
Views
0
Likes

Citation

DOI: 10.1038/s41592-023-02007-6

DOI

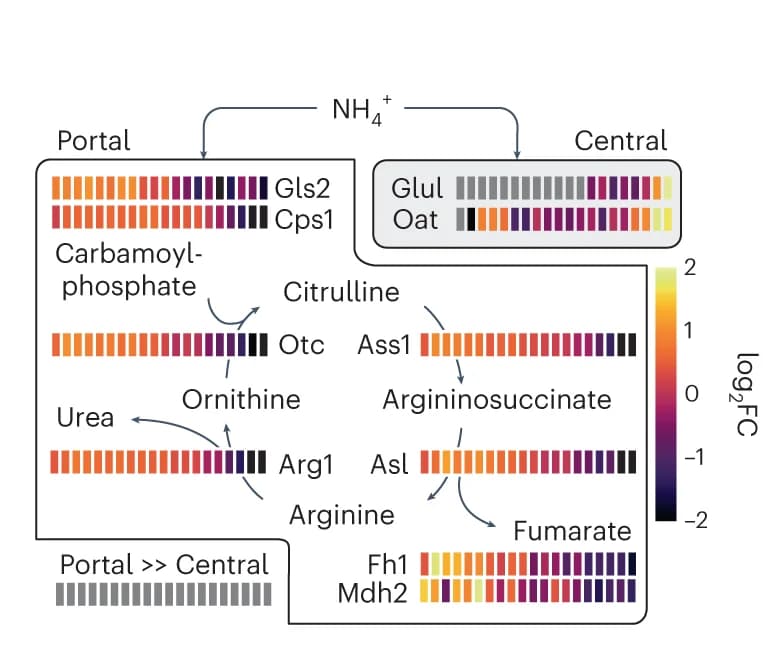

Levels of urea cycle and connected enzymes from portal (left) to central (right) bins as log 2 FC relative to median expression in the two center bins. Portal box: active in portal regions. Central box: active in central region.

#Workflow#Illustration#Urea Cycle#Enzymes#Fold Change#Portal Region#Central Region
