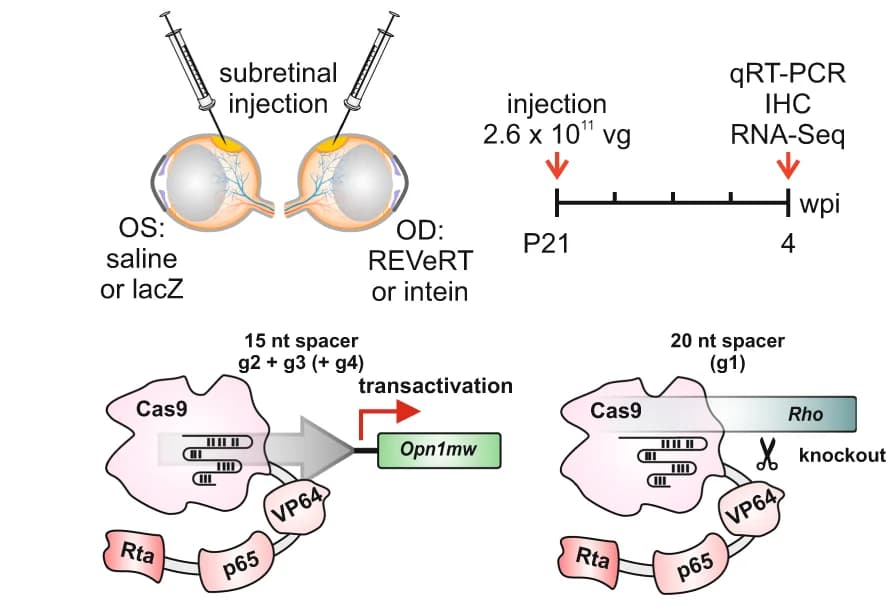

Experimental design and timeline of experiments shown in c-e. sgRNAs with different spacer lengths are used for a simultaneous knockout (20 nt, g1) of Rho and transcriptional activation (15 nt, g2-g4) of Opn1mw . g4 was added in ( d ) as indicated.

#Illustration#Workflow#Experimental design#sgRNAs#Rho#Opn1mw#Transcriptional activation
