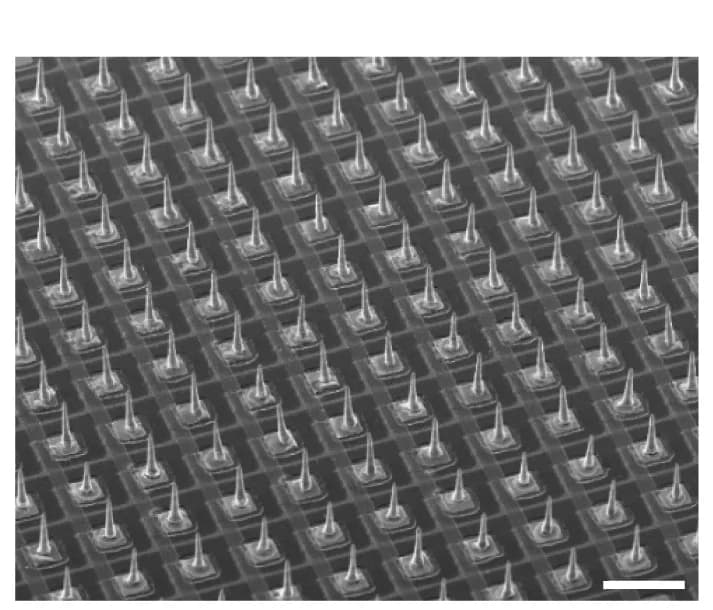

Scanning electron microscopy (SEM) image of the high-resolution phototransistor arrays (50 x 50 pixels; pixel pitch, 100 m) with 3D LM microelectrodes of 60 m height before depositing the top parylene C encapsulating layer. Scale bar, 100 m. This experiment was repeated five times with similar results.
