Microscopy from Scientific Research

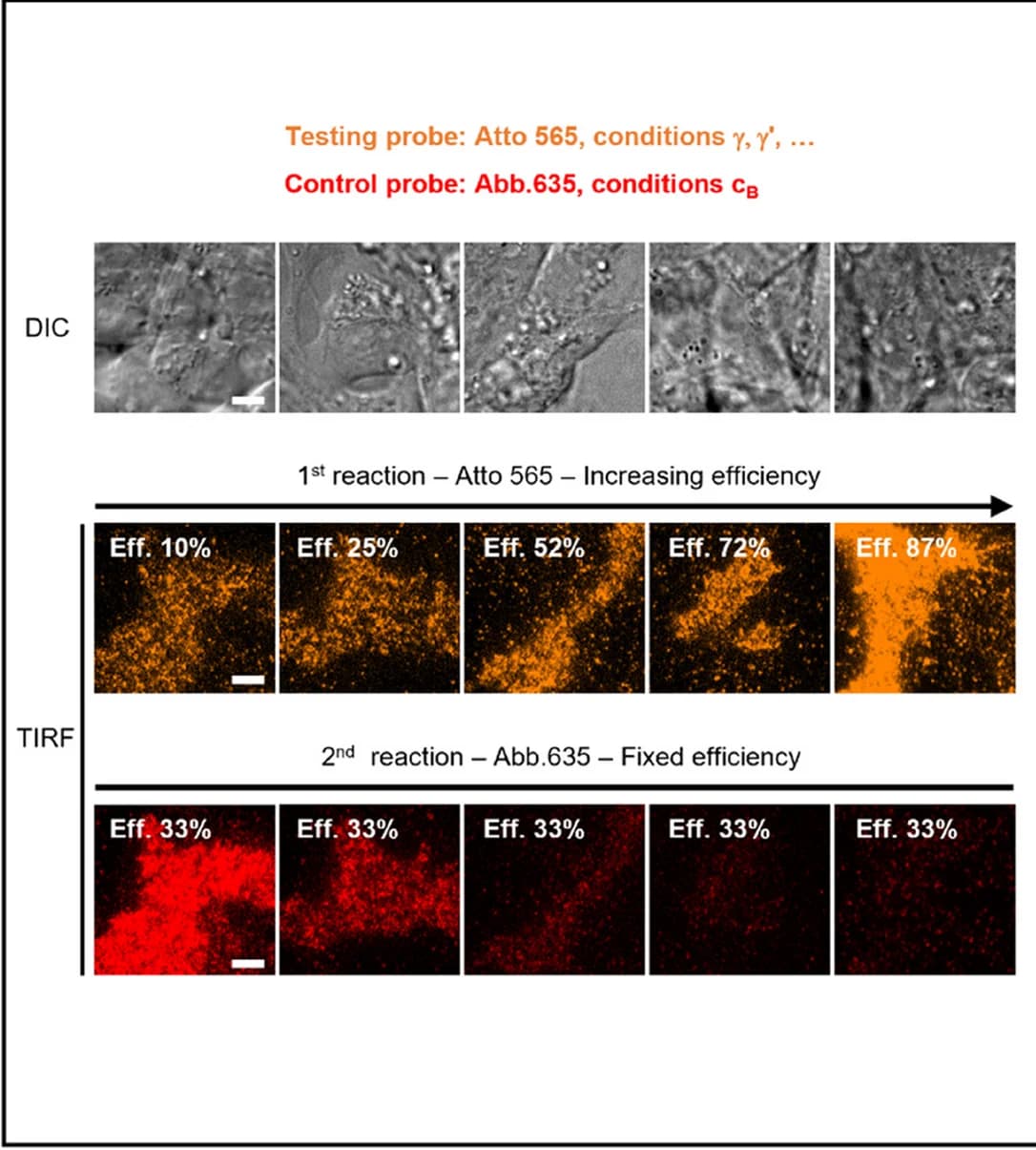

Examples of experimental images corresponding to the workflow steps depicted in Fig. 1 B, for some of the analyzed conditions reported in D . Each image column shows a single cell: DIC image (top); TIRF channel of the tested probe Atto 565 (middle, orange), TIRF image of the control probe Abb.635 (bottom, red). Eff.: efficiency estimated (for Atto 565 in varying conditions) or previously measured (for Abb.635 in fixed conditions).

DOI
