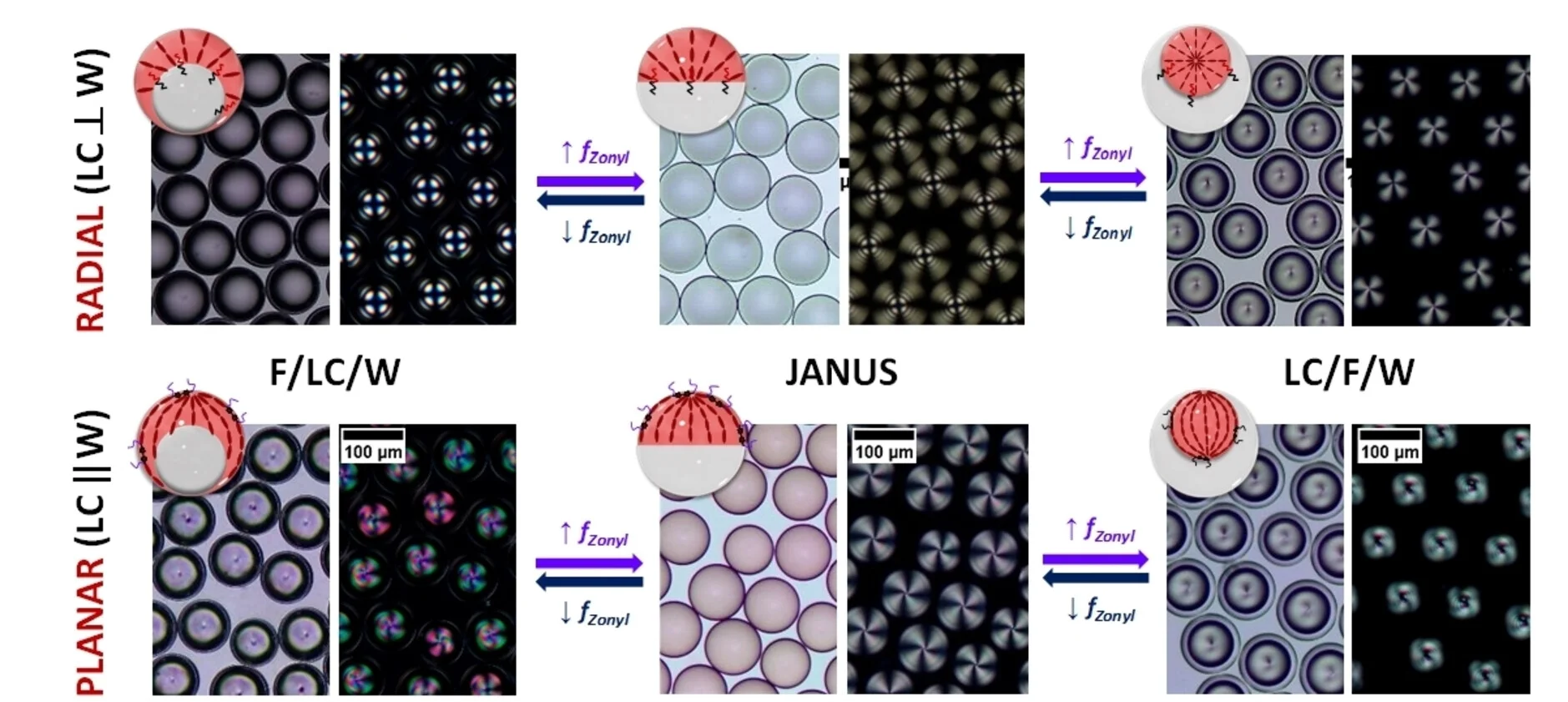

Complex LC emulsions with radial (top) and planar (down) alignment, which dynamically reconfigure in response to surfactant variations between F/LC/W double emulsions, Janus droplets, and LC/F/W double emulsions. Adapted from Refs. [5b, 18b] with permission. Copyright 2014 and 2019 American Chemical Society.
